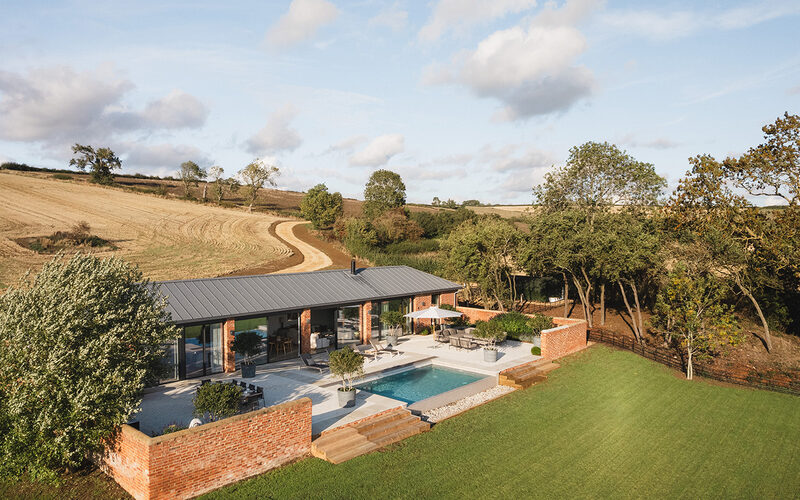

Sheepwash Barn is a former open-sided sheep barn overlooking Eyebrook Reservoir, transformed into a single-storey, low-carbon rural retreat. IQ Glass supplied and installed a glazing package of full-height sliding doors and tall aluminium windows to enclose the original agricultural shell while opening the living spaces to the gardens and long views beyond. The barn conversion sliding doors in Rutland were designed to bring daylight deep into the plan, provide simple day-to-day operation, and sit quietly alongside the building’s rural material palette.
Products Used
Project Partners
Photography: The Shearling ©️ @uniquehomestays
Location
Stoke Dry, Rutland
Design challenges for barn conversion sliding doors in Rutland
Converting an agricultural structure into a comfortable, weather-tight home required the new openings to do two things at once: deliver large, clear glazed spans and remain visually restrained against the barn’s simple form. The glazing needed to read as a precise insertion rather than a new façade, keeping external lines minimal and maintaining the character of the original shell. At ground level, the brief demanded level internal floors and an effortless transition to terraces and gardens, which introduced a drainage challenge at the door line. Window positions also needed to balance controlled ventilation with carefully framed views, while responding neatly to existing geometry so the elevations remained calm and consistent.

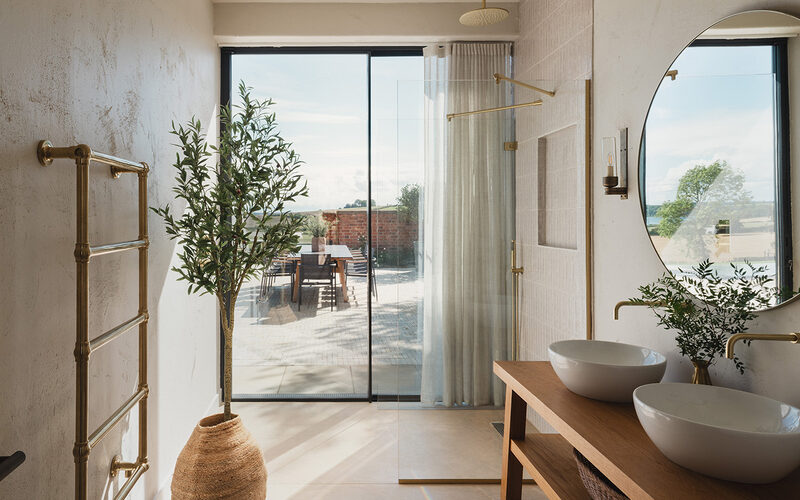

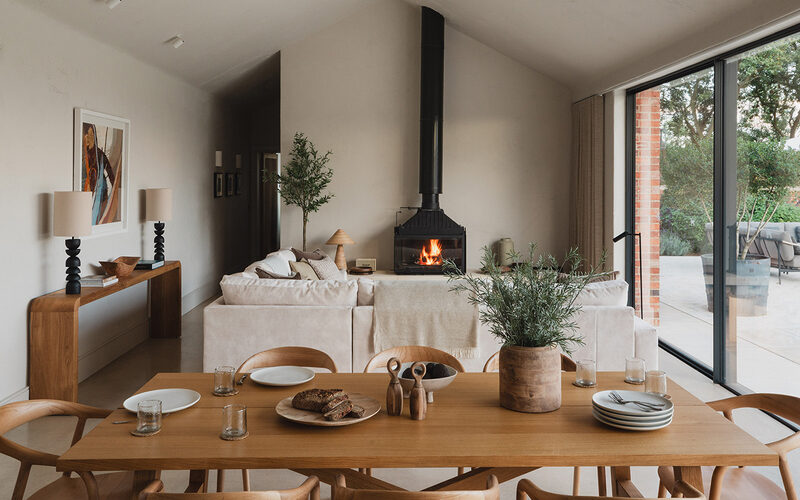

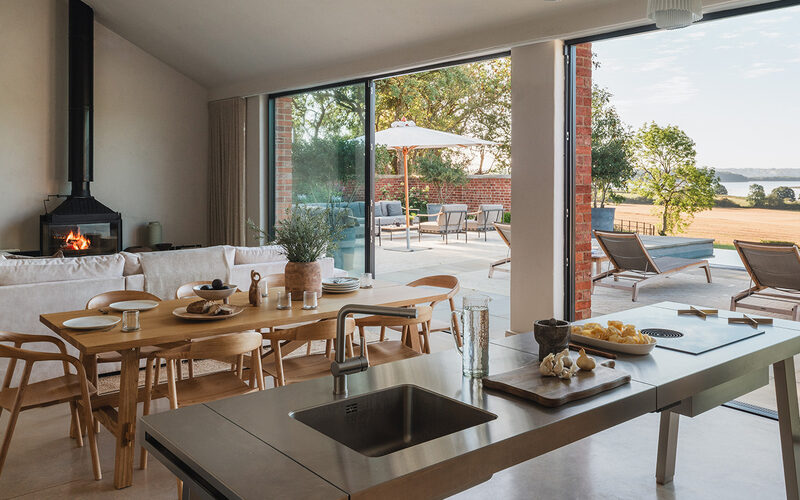

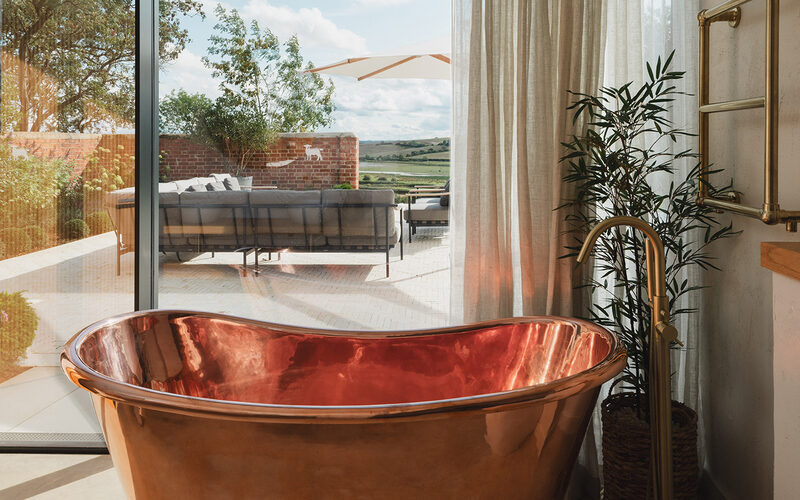

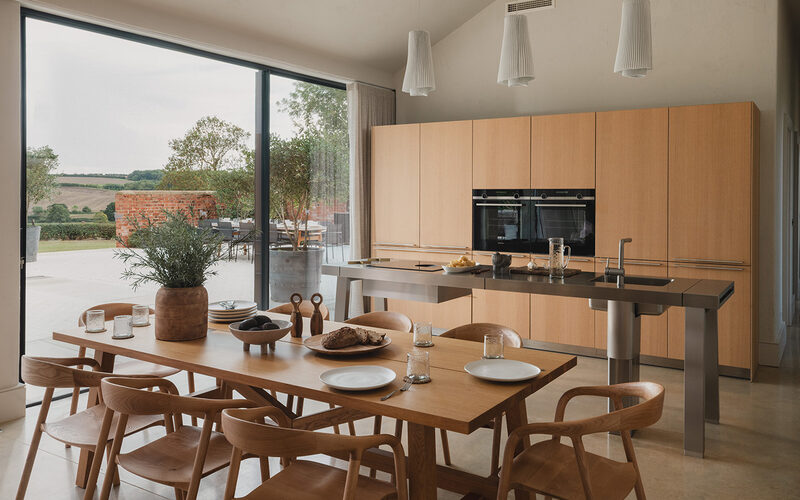

Slim sliding door sets for full-height barn openings
Across the main elevations, slim sliding door sets were configured to create wide, full-height openings with a minimal external appearance. Each set pairs a single moving sash with fixed glazing to reduce visual breaks across the elevation while keeping operation straightforward. Internal-only locking was used to keep external detailing uncluttered, helping the new glazing sit comfortably alongside the barn’s rural materiality rather than drawing attention to hardware. The overall set-out prioritises daylight, clean sightlines and reliable everyday use.

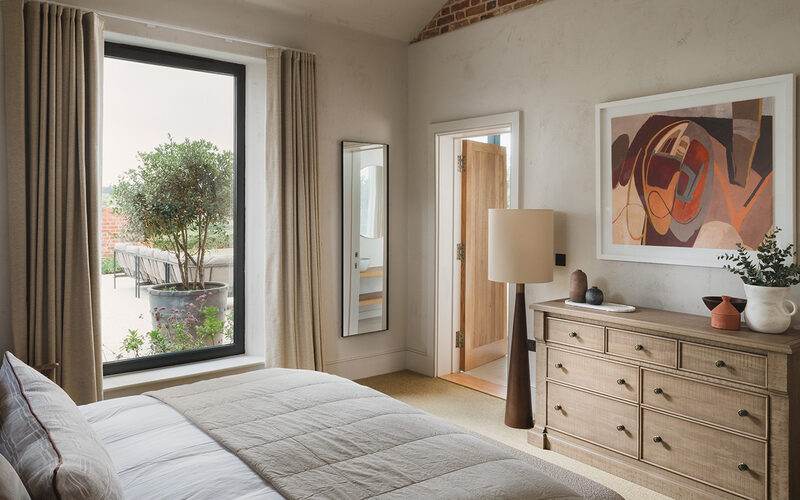

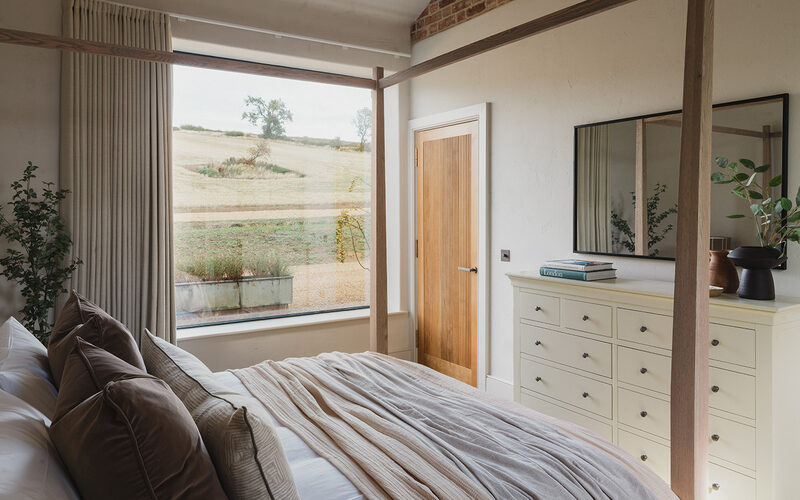

Flush threshold drainage and aluminium window ventilation
To achieve a level threshold without bulky build-ups, flush thresholds were supported with an integrated slot drain along the sliding door line, managing surface water at the perimeter while allowing a seamless floor finish to terraces and gardens. Elsewhere, aluminium casement and tilt-and-turn windows provide controlled ventilation and practical opening, with fixed lights and trickle vents maintaining background airflow. Where required, shaped pressing details were incorporated so window lines respond neatly to the existing form without compromising the slim geometry of the frames.
Performance considerations
With large glazed areas forming a defining feature of the conversion, performance requirements were embedded into the specification. Solar control options were allowed across the glazing package to manage glare and heat gain while maintaining a clear, neutral appearance suited to a rural setting. Selected larger panes were heat soak tested as an additional quality measure, supporting long-term durability where expansive glass spans are integral to the architecture. Comfort and usability were supported through a considered mix of opening windows and background ventilation, ensuring the building can be naturally ventilated without disrupting the minimal external aesthetic.
Technical details
-
Sliding doors: 20mm junction sightline; panes up to 2500mm W × 3000mm H (up to 320kg); Uw 1.3 W/m²K (typ. DGU)
-
Weather testing (sliders): air Class 4 / water 7A / wind C5
-
Acoustics (sliders): up to 41dB reduction
-
Threshold + drainage: flush threshold with 110mm integrated subframe drainage profile + integrated slot drain
-
Windows: Uw from 1.1 W/m²K (project-calculated); glass range 24–40mm (typ. DGU)
-
Weather testing (windows): air Class 4 / water E1200 / wind resistance 2400 Pa
-
Security: PAS 24 (windows); up to 4-point locking (sliders, height dependent)
-
Glass: solar control; selected large panes heat soak tested

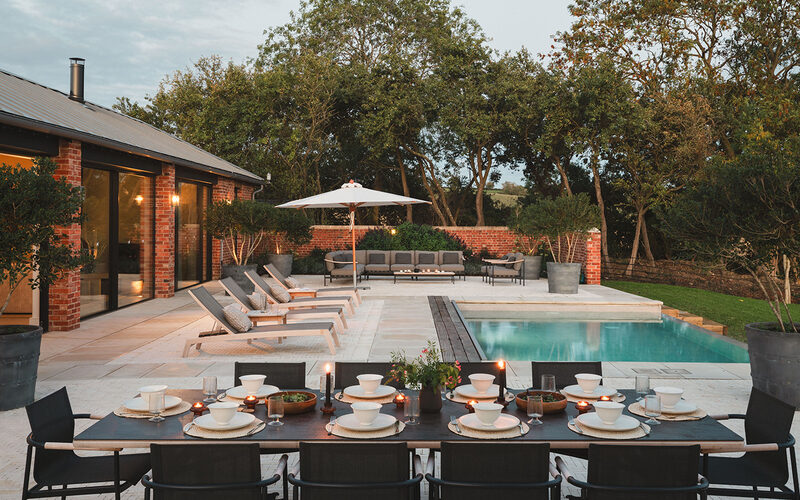

The external setting was treated as part of the experience, with landscaping designed by Bunny Guinness. The glazing was set out to capture composed garden views and draw the eye beyond to Eyebrook Reservoir, turning the barn’s new openings into deliberate viewframes rather than simply larger windows. The result is a calm, light-filled home that retains the building’s rural character while delivering modern comfort and everyday practicality. This approach is particularly well suited to barn conversions where large, full-height openings and level thresholds are required without visually heavy framing, and where the glazing must sit quietly alongside rural materials and simple forms. The completed conversion now operates as a holiday home through Unique Homestays.
