Old Fort Road

A Frameless Glass Wall in Shoreham for a Bespoke Beachside Home

Project Overview

Old Fort Road is a bespoke four‑bedroom beachside home located directly on the seafront in Shoreham‑by‑Sea. Designed by ABIR Architects, the project involved demolishing an existing bungalow and replacing it with a contemporary family home designed around expansive views of the English Channel. IQ Glass was appointed to design and install the specialist architectural glazing to the primary living spaces. Central to the scheme is a large frameless glazed façade incorporating open‑corner sliding doors and a continuous frameless glass wall in Shoreham, allowing the architecture to respond directly to its coastal setting.

Project Partners

Jim Stephenson

Location

Shoreham-By-Sea, West Sussex

Coastal Architecture and Design Constraints

Designing a home directly facing the sea presents both architectural opportunity and technical challenge. For Old Fort Road, the brief required uninterrupted views and strong visual connection to the beach, combined with robust construction suitable for a harsh marine environment. The design places all primary living spaces on the first floor, a common arrangement for coastal houses seeking to maximise outlook and daylight. This required extensive floor‑to‑ceiling glazing with minimal framing while maintaining structural integrity, thermal performance and weather resistance.

The rear elevation and balcony are exposed to prevailing wind and salt‑laden air. Any glazing solution therefore needed marine‑grade finishes, controlled joints and glass specifications that balanced transparency with solar control and internal comfort.

Open‑Corner Sliding Doors for Panoramic Sea Views

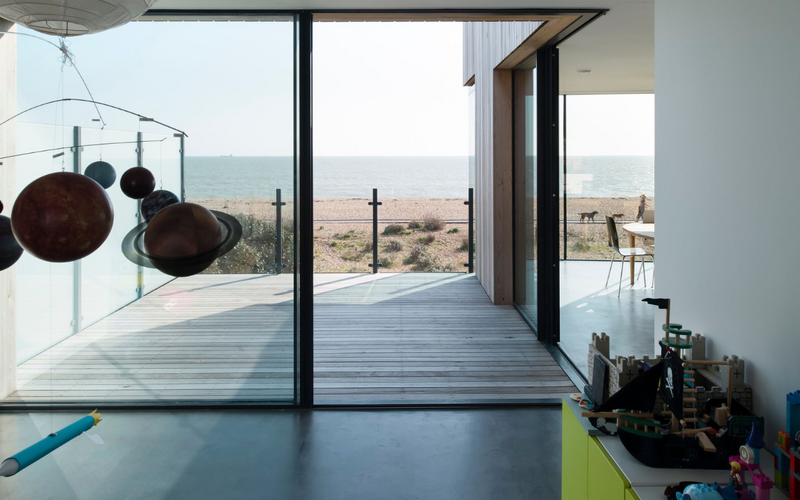

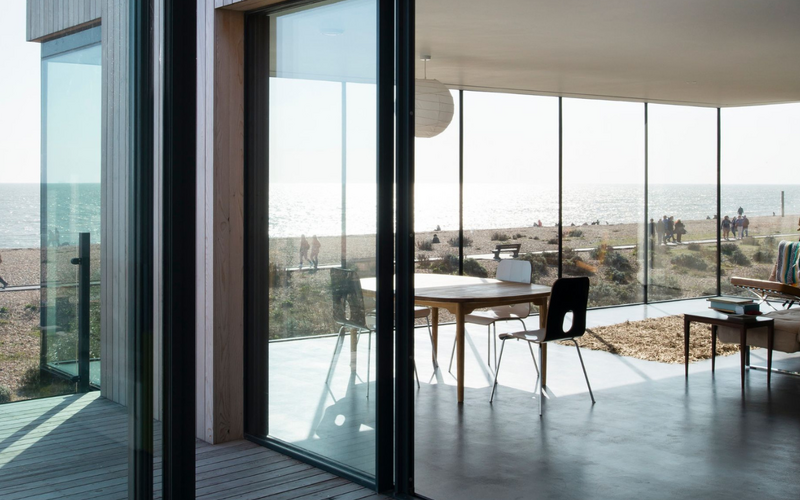

To deliver the architectural vision, IQ Glass installed an open‑corner sliding door arrangement to the first‑floor living space overlooking the sea. Two elevations meet at an inward opening corner, allowing the living area to open fully onto the balcony. One elevation was configured as a pocket sliding system so that the panels disappear completely into the building fabric, maximising usable internal space at the corner.

The opposing elevation uses larger sliding panels to maintain uninterrupted views along the coastline. Together, the system reads as a frameless glass enclosure, allowing the horizon, sea and sky to define the experience of the interior space.

Structural Glass Wall and Marine‑Grade Performance

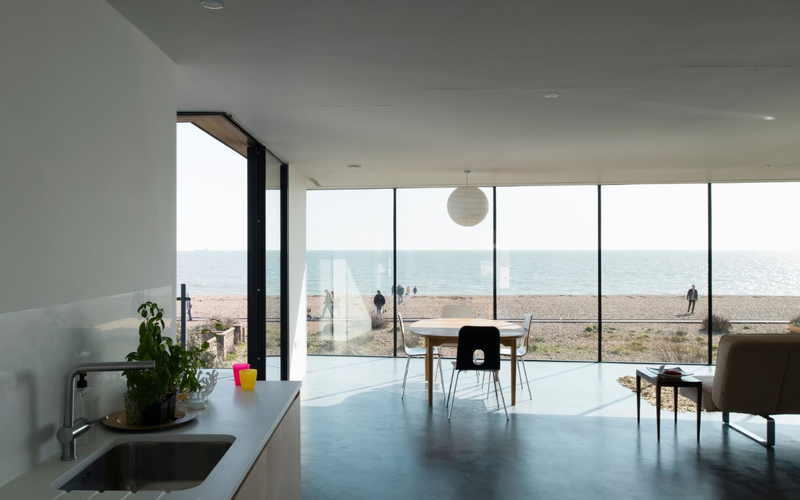

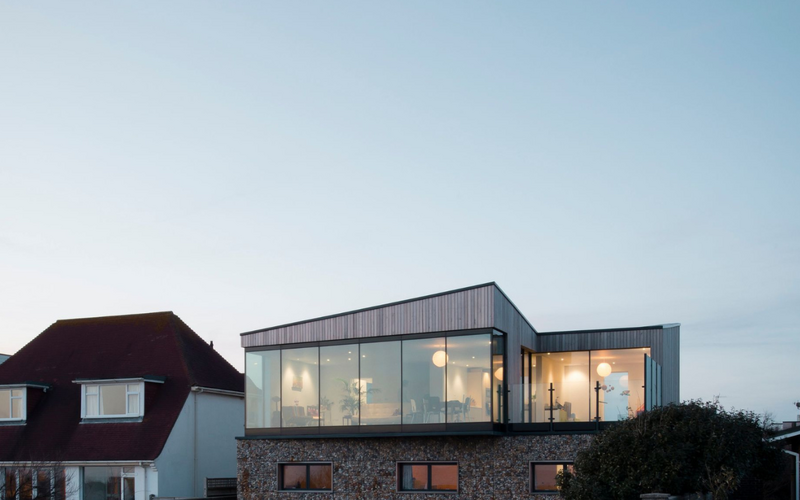

Alongside the sliding doors, IQ Glass installed a large U‑shaped structural glass wall that extends the glazed façade across the rear elevation. This frameless glass wall in Shoreham spans the sea‑facing elevation and returns along both sides, using multiple panes of structural glass joined with silicone joints to maintain visual continuity.

The glass was designed to step externally over the roof and floor structure, creating a sheer glass finish and concealing the building edges when viewed from outside. All glazing systems were finished with marine‑grade coatings and specified with solar control and low‑e glass to reduce heat gain while preserving daylight and clarity. These measures ensure long‑term durability and comfort in a coastal setting.

Architectural Recognition and Long‑Term Value

The completed home has received significant recognition, including an RIBA South East Award in 2017 and Overall Winner at the Daily Telegraph Homebuilding and Renovation Awards in 2016. The frameless glazing plays a defining role in the project’s architectural identity, allowing the building to sit lightly against the beach landscape while delivering a highly functional family home. The integration of open‑corner sliding doors and structural glass contributes to both the longevity of the building fabric and the long‑term value of this unique seafront property.

Technical Details

Due to the bespoke nature of the architectural glazing package, the following provides a focused overview of the principal elements installed by IQ Glass:

  • Open‑corner slim sliding glass door system forming a 90‑degree inward corner to the first‑floor balcony
  • Sliding door panels measuring approximately 2.6m high, with one elevation 3.8m wide and a return elevation 2.6m wide
  • One elevation configured as a pocket sliding system to maximise internal space
  • U‑shaped frameless structural glass wall measuring approximately 8.5m wide on the sea‑facing elevation
  • Side returns of structural glass measuring approximately 1.4m on each elevation
  • Structural glass wall stepped externally, increasing overall glazed height from 2.5m internally to approximately 2.9m externally
  • All glazing supplied as double‑glazed units with low‑e and solar control coatings
  • Marine‑grade finishes applied to aluminium framing for coastal durability

Create a Frameless Glass Wall on your Next Project in Shoreham

For architects, developers and UHNW clients exploring a frameless glass wall in Shoreham or considering a bespoke coastal home using architectural glazing, Old Fort Road demonstrates how slim sliding systems and structural glass can transform seafront living spaces. IQ Glass provides technical design support, specification guidance and specialist installation for complex coastal glazing projects. Contact our team to discuss your requirements.
