The Penbryn Mill project in West Wales is a great example of a contemporary glass extension in West Wales, and of how contemporary glazing can be used through thoughtful design and advanced glazing technology on a historic building. IQ Glass successfully transformed a historic mill into a contemporary home that respected its past while embracing modern living, creating two contemporary glass box extensions.

IQ Glass collaborated with the architect to design and install a bespoke glazing package tailored to the mill’s unique site conditions and architectural goals. The key features of the glazing is two glass extensions provided to the Welsh mill. These extensions incorporate slim sliding doors and structural glass rooflights that introduce modern performance standards whilst preserving the historic character of the building. This helped to achieve the project’s vision of openness, transparency, and connection to the surrounding landscape.

Products Used

Project Partners

Architect - Creative Mass Ltd

Contractor - Jamson Estates Ltd

Photographer - David Butler

Location

Midlands & North

Glass Extension in West Wales - Penbryn Mill - IQ Glass

A Contemporary Glass Extension for a Heritage Setting

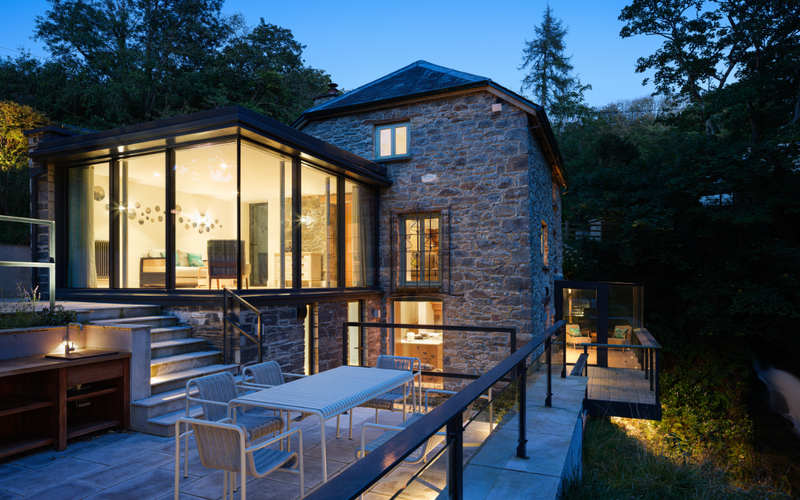

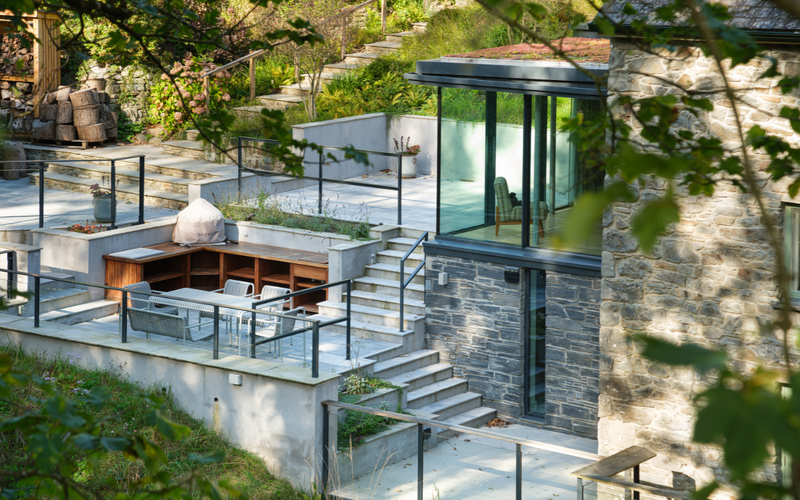

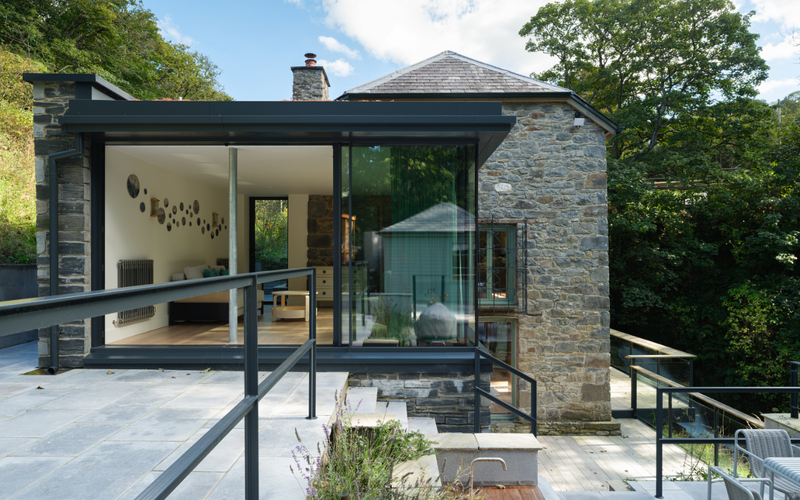

Two contemporary glass box extensions were designed and installed to complement the rugged stone structure of the former mill. Each extension features slim sliding glass doors and structural glass rooflights, selected to maximise natural light and create a seamless connection to the surrounding landscape.

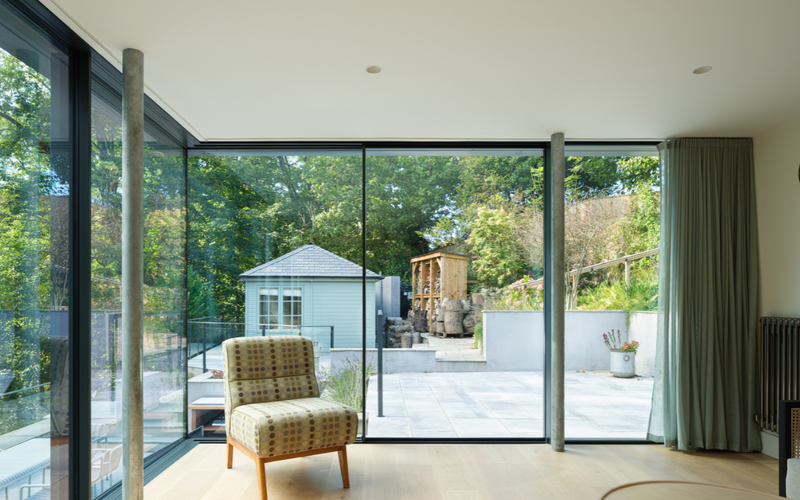

A Marine Grade Finish in RAL 7016 was specified to withstand the coastal environment and to sit harmoniously against the mill’s restored stonework. When closed, the slim sliding doors frame uninterrupted views of the countryside. When open, they dissolve the threshold between inside and out, allowing the building to flow naturally into its outdoor spaces. This visual lightness provides a striking counterpoint to the solidity of the original masonry.

Advanced Glazing Performance

The glass extension in West Wales was designed to enhance natural light and strengthen the building’s connection to its surroundings. This design required precision engineering and frameless or minimally framed glazing to maintain transparency. The exterior glass on the extension had a low‑maintenance coating to reduce the frequency of cleaning, due to its coastal location.

A solar control coating (SN70/35) was applied to the glazing, designed to manage heat gain whilst maintaining excellent levels of natural light throughout the day. This advanced coating reflected the sun’s infrared energy, helping to keep the internal space cooler during periods of strong sunlight.

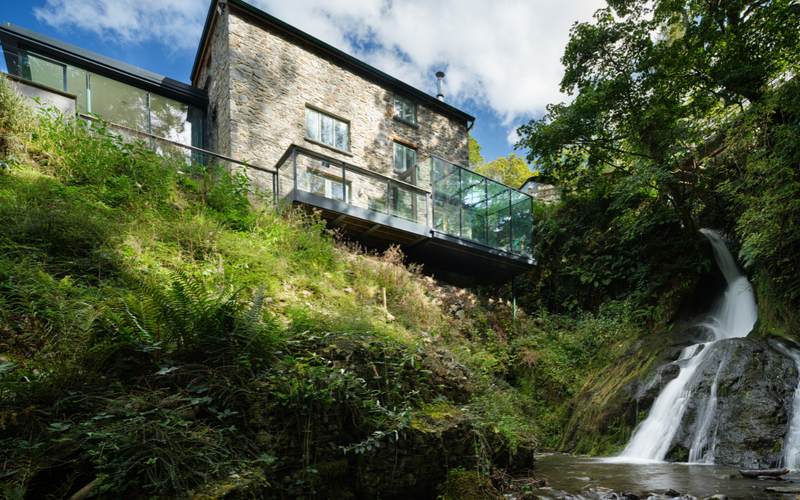

A Glass Extension Suspended Over the Waterfall

The centrepiece of the renovation is the dramatic glass extension that projects out over the waterfall. Designed as a transparent, floating structure, it creates a unique vantage point above the flowing water and reinforces the project’s ambition to connect the home with its natural surroundings.

Achieving this level of transparency required precision engineering and the use of frameless or minimally framed glazing. The external glass was finished with a low‑maintenance coating to reduce cleaning requirements in the coastal climate.

Respecting the Mill’s Heritage and Core Challenges

Restoring a heritage building was never a straightforward task. Penbryn Mill, originally built from local stone and historically finished with lime render, required a careful approach to preserve its character. The design intent was to rebuild and restore the mill using the original stone and traditional materials, including lime render and box sash windows, to return the building to its former appearance. IQ Glass’s installation team adapted each glazing element to the irregularities of the existing stonework, ensuring a perfect fit while protecting the integrity of the original building.

Core challenges lay in the building’s structural design, and as a historic mill, the structure demanded a sensitive approach that balanced preservation with innovation. The project became a careful negotiation between heritage constraints and modern living standards.

Techinical Snippet:

Frameless structural glazing- Frameless structural glass with Low maintenance external coating to refuce cleaning frequencey

Solar control - SN70/30+ Ritec Coating

Ral Colour - RAL 7016 ( Marine Grade Finish)

Slim Sliding Doors - Three track, panel height: 2.2–2.5m

Locking Handle- PPC Lever locking handle

Lock Type- Multi-Point Lock

Balancing Tradition and Innovation

Penbryn Mill stands as a compelling example of how contemporary glazing can elevate a historic building without overshadowing its character. Through thoughtful design, advanced glazing technology and meticulous installation, IQ Glass helped create a home that celebrates both its past and its future.

If you’re planning a heritage renovation or a contemporary glass extension in West Wales, our technical team can support you from concept through to installation. Let’s explore how modern glazing can transform your project.
