Barn renovation project with minimally framed double-height sliding doors

Frameless Courtyard Glazing Between Existing Brick Structures

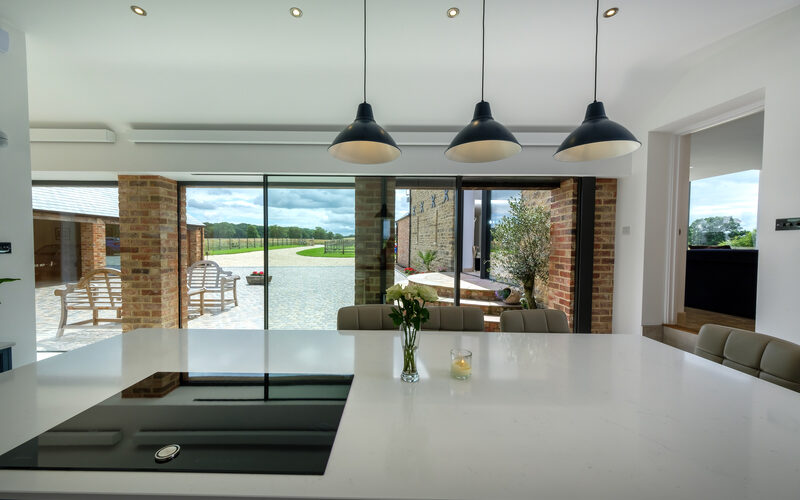

To the kitchen and guest accommodation building, IQ Glass designed a combination of frameless structural glazing and sliding doors positioned between the original brick piers. Three large fixed structural glass panels occupy the central openings, creating uninterrupted views across the courtyard while maintaining the rhythm of the historic masonry.

At either end of the elevation, slim sliding doors were engineered to slide discreetly behind the existing brick pillars. This arrangement preserves the appearance of the original building while allowing direct access to the courtyard. By positioning the glazing within and behind the existing structure, the architecture retains its agricultural character while benefitting from contemporary levels of light and transparency.

The result is a highly restrained approach to barn renovation glazing, using glass to enhance rather than dominate the retained fabric of the Northamptonshire property.

Double-Height Sliding Doors Within Historic Barn Openings

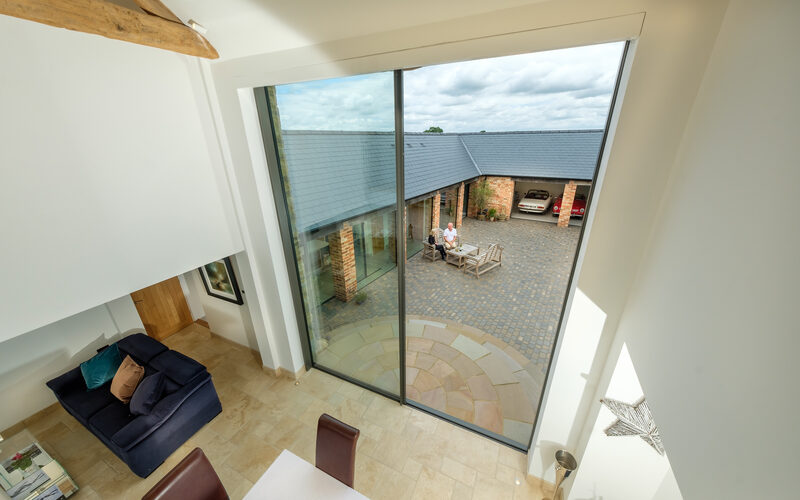

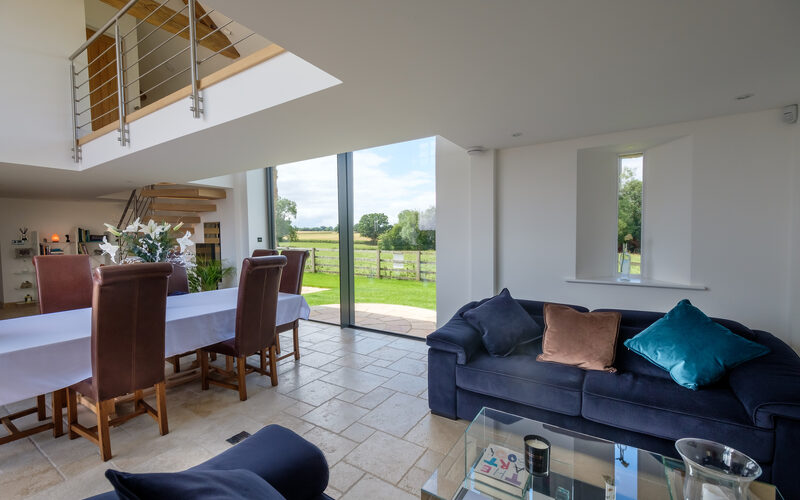

The most significant glazing elements of the project are the two double-height sliding doors installed into the former barn openings of the principal farm building. Positioned on opposing elevations, these large, glazed openings provide access from the courtyard and gardens directly into the dining area.

Rather than infilling the openings with conventional windows or doors, IQ Glass designed oversized slim framed sliding systems that exploit the full height of the existing barn apertures. Each installation reaches approximately 4.5m in height, preserving the scale and drama of the original openings while allowing daylight to enter from both sides of the building.

Because the historic openings had moved out of plumb over time, bespoke pressings were carefully detailed and recessed into the surrounding walls to create clean transitions between glazing and masonry. This attention to detail ensures that the new interventions feel integrated within the retained structure rather than applied to it.

Technical Details

• Full external glazing package to a U-shaped barn conversion centred around a courtyard

• Slim, aluminium framed sliding glass doors installed throughout

• Garage elevation formed from a two-track, three-panel bi-parting sliding door measuring approximately 8.4m wide x 2.4m tall

• One sliding panel designed to slide into a concealed pocket behind the existing brick wall

• Sliding glass panels weighing approximately 255kg each

• Three frameless structural glass windows installed between original brick pillars to kitchen and guest accommodation areas

• Fixed structural glazing panels measuring approximately 2.5m wide x 2.3m tall

• Two pocket sliding doors installed to kitchen and guest accommodation elevation measuring approximately 2.3m wide x 2.4m tall

• Sliding panels positioned behind existing brick pillars to minimise visual impact

• Two double-height sliding door systems installed within former barn door openings

• East elevation measuring approximately 3.6m wide x 4.5m tall

• West elevation measuring approximately 3.6m wide x 4.4m tall

• Two-track, two-panel configuration with one fixed and one sliding pane

• All glazing double glazed using 8mm heat soak tested toughened glass

• Solar control coating applied throughout principal glazed elevations

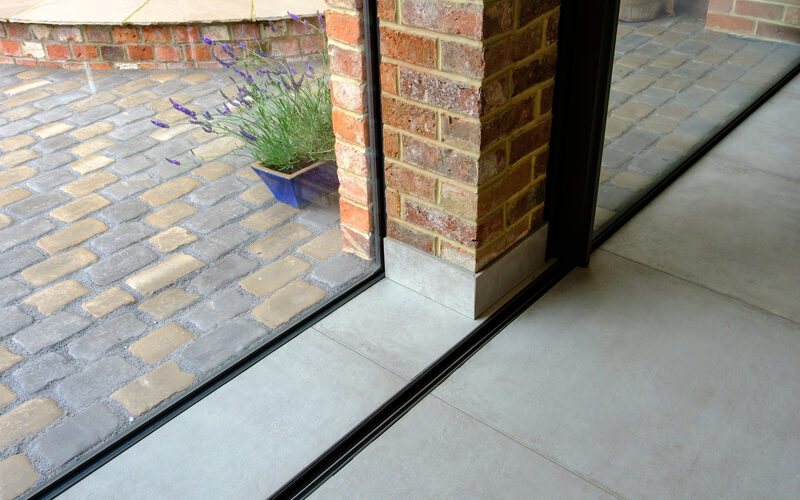

• Flush thresholds used across all sliding doors

• Electro-magnetic locking integrated into sliding systems

• All framing finished in PPC RAL 7022

Begin Your Barn Renovation Glazing in Northamptonshire Project

For architects, developers and homeowners planning barn renovation glazing in rural locations like Northamptonshire, Coolington Barn demonstrates how specialist glazing can preserve the character of former agricultural buildings while introducing the daylight, performance and connectivity expected from modern homes.

IQ Glass works closely with project teams to develop bespoke glazing solutions for barn conversions, farmhouse renovations and rural heritage projects. Speak to our team to discuss glazing systems, technical detailing and examples relevant to your scheme.
